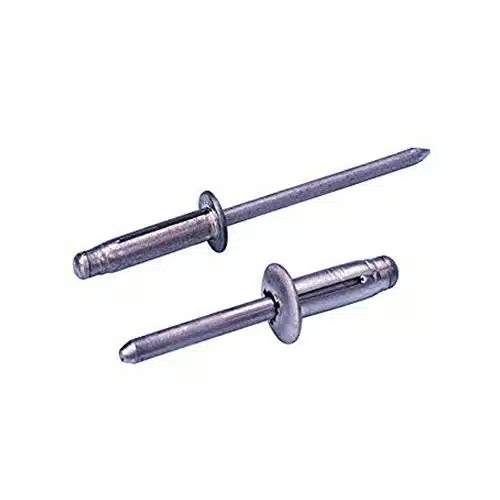

The Avdel Bulbex bulbing rivet / non-structural breakstem fastener is designed with a split tail formation, providing a much larger blind side bearing area against the rear sheet. This also allows for a wide variation in material thickness. The Bulbex blind breakstem fastener is ideal for use with plastic and low strength material.
Key Features
- Multi-grip capability
- Split tail formation provides a very large blind side bearing area against the rear sheet
- Retained stem
- Wide choice of installation tools
- One fastener can often be used to replace several standard grip fasteners
- Accommodates wide variations in material thickness
- Reduced fastener inventory and simper stock control
- Spreads the tail bearing load/clamp load on the rear sheet
- No damage, electrical problems or rattling due to loose stems
Assembly Applications
- Caravans
- Domestic appliances
Specifications
- Sizes: 4.0mm and 4.8mm (5/32″ and 3/16″)
- Material: Aluminium alloy
- Headform: Dome, large flange
Full Range of Bulbex Part Numbers
- 0BF01-00516
- 0BF01-00523
- 0BF01-00619
- 0BF01-00625
- 0BF01-00630
Note: We will confirm which sizes you need when providing a quote.
