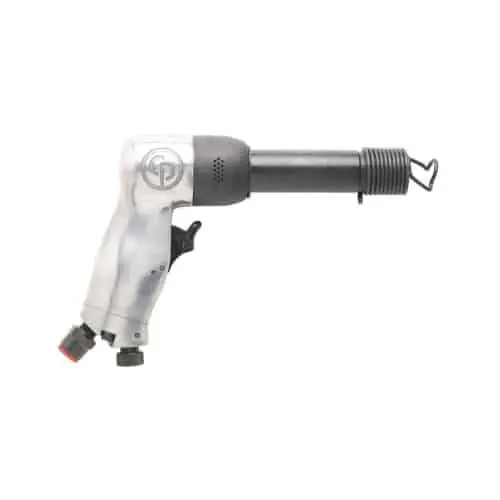

The Chicago Pneumatic CP717 Air Hammer, .498 Shank (Super Duty Air Hammer) is the most powerful air hammer available for automotive, truck and off road equipment. Extra large .498 shank for heavy duty applications. Heavy Duty customers will love this powerful tool. Positive action trigger for precise control. Ideal for front end work, king pin bushing removal and installation of bull dozer walking beams, removal of truck springs and heavy duty spring bushings.
Benefits / Use
- Made for cutting, bushing driving, body shop and front end work
- Power and precision
- Flexible operating positions
- Ideal tool for deep cutting, bolt riveting and super-duty applications
Features
- .498″ round shank
- Heavy duty pistol grip hammer
- High power air hammer
- Positive action trigger
Operation
- Fix the accessories properly to the tool.
- Connect device as shown in Fig. 01.
- To start the machine, pull the trigger (A). Machine speed is increase by increasing pressure on the trigger. Release the trigger to stop.
- To adjust output power, turn the regulator (C).
- Remember that it is always the tool that must do the work. There is no need for the operator to apply extra pressure on the tool when it is working. Maintain the contact with the work surface by applying enough pressure to stop the tool from bouncing.
Specifications
- Blows per minute: 1800
- Bore diameter: 3/4-Inch
- CFM: 7
- Chisel shank opening: .498-Inch
- Hose size: 3/8-Inch
- Piston stroke length: 2 11/16-Inch
